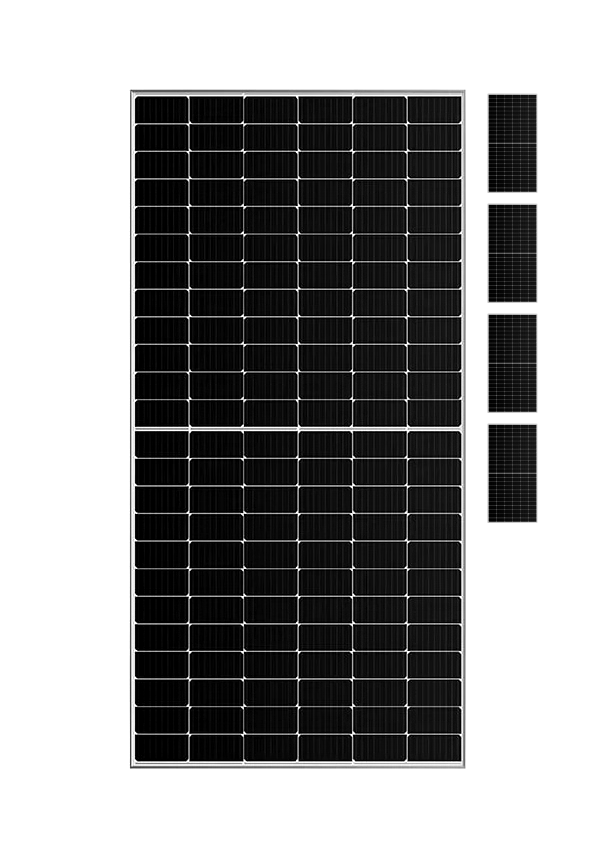

585W Solar Panel (pack of 4)

Choose SolPan Canada Solar Panels. The latest generation solar panels adapted to our winters.

And start producing your electricity now. Your order will be delivered within 10 to 25 days, depending on the current waiting period related to borders. You can opt for payment upon delivery, at no additional cost.

DESIGN

Model: SP585BI
Solar cells: N-type Mono
Number of cells: 144 (6×24)
Dimensions: 2279mm × 1134mm × 30mm
Front glass: 2.0mm coated semi-tempered glass
Back glass: 2.0mm semi-tempered glass
Frame: Anodized aluminium alloy
Junction box: IP68 certified (3 by pass diodes)
Output cables: 4mm, 300mm (+) / 300mm (-)
Connectors: Mc4 compatible
Mechanical load test: 5400Pa

BIFACIAL BONUS

Rear power gain: 5% à 25%

GUARANTEE

Material & Power: 25 years

DELIVERY

Typically, our customers receive their solar panels within 10 to 25 days.

SolPan will provide you with a private import, directly from the manufacturer. You will receive an email notification at each stage, allowing you to track your order in real time.

DELIVERY COST

Free, everywhere in Quebec and Ontario. Take advantage of the payment option upon delivery to track your private import of solar panels with complete peace of mind.

ORDER DEPOSIT AND CANCELLATION

You can cancel your order at any time, free of charge, as long as the solar panels are not delivered to your home. In case of cancellation, the refund will be processed within 72 hours, including the deposit.

ELECTRICAL PARAMETERS (STC*)

Maximum power (Pmax/W): 585
Open circuit voltage (Voc/V): 52.03
Short circuit current (Isc/A): 14.36
Voltage at maximum power (Vmpp/V): 42.86
Current at maximum power (Imp/A): 13.65
Module efficiency: 22.64

TOLERANCE, NOMINAL VALUE AND TEMPERATURE

Operating module temperature: -40°C à +85°C
Maximum system voltage: 1500 DC (IEC)
Maximum nominal value of series fuses: 30A
Power Tolerance: 0/+5W
Nominal operating temperature (NMOT): 45±2°C
Temperature coefficient of Pmax: -0.29%°C
Temperature coefficient of Voc: -0.25%°C
Temperature coefficient of Isc: +0.045%°C

CERTIFICATIONS

ISO 9001: Quality management system
ISO 14001: Environmental management system
ISO 45001: Occupational health and safety management system
